Andrew Connectors
Installation Instructions

Andrew used to produce drawings for inclusion in their instruction sheets. They have now moved to photographs (and less writing: no doubt hoping that a set of pictures will be worth a thousand translations).
Fair enough! But it means that the scanned GIFs are ~much~ bigger in size to download. Can't be helped.
20060824: Prompted by Bo, OZ2M, I have converted the largest GIF files to JPEG using 'Imagemagick'.
On the largest files this conversion has reduced the file-size to 20% of the original and - as far as I can tell - retained the definition.

Photo-sheets are (still) prefixed by 'P'.

Suggest: Right-Click and select 'Open in new window'

[P] FSJ 1-50 Cable Connector "N" Page 1

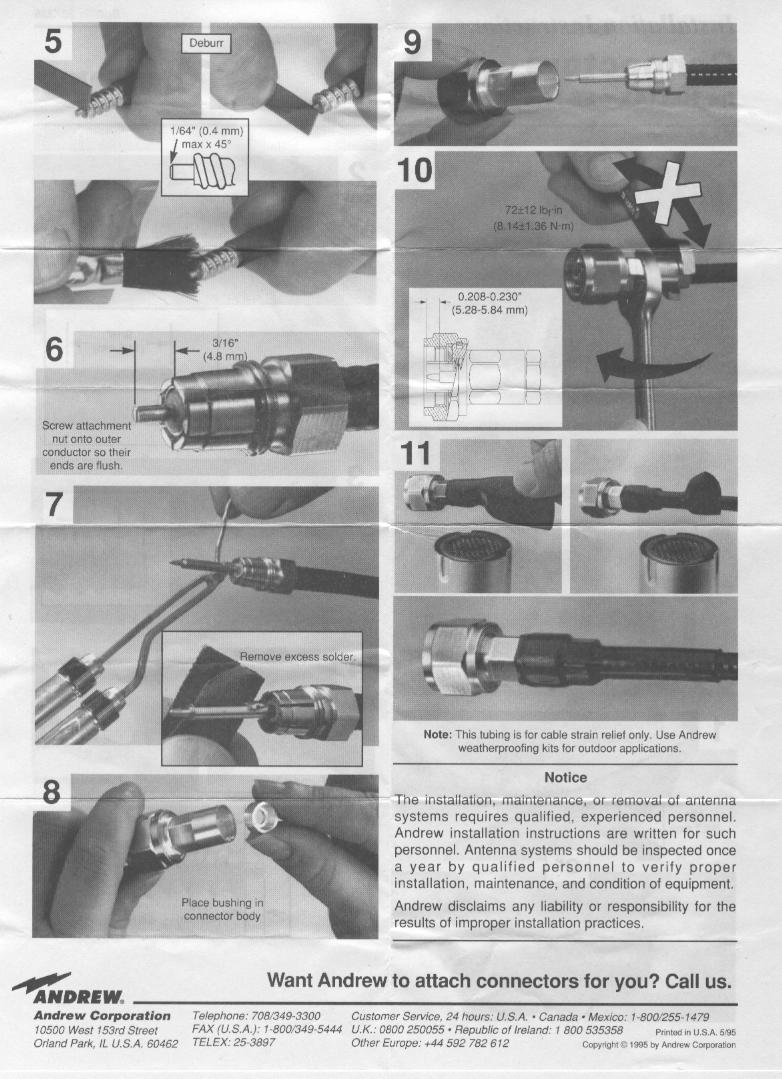

[P] FSJ 1-50 Cable Connector "N" Page 2

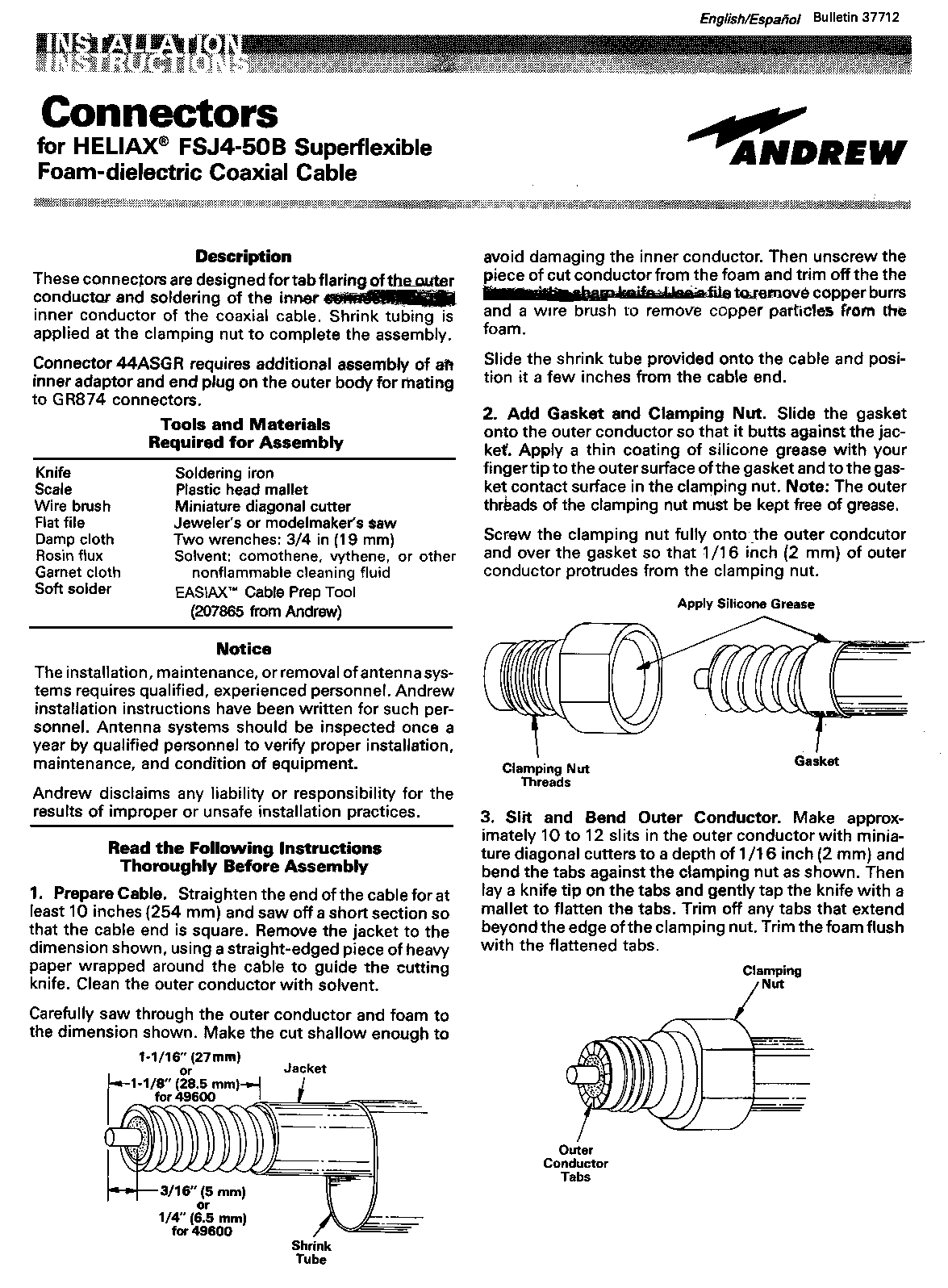

FSJ 4-50 Cable Connector "N" Page 1

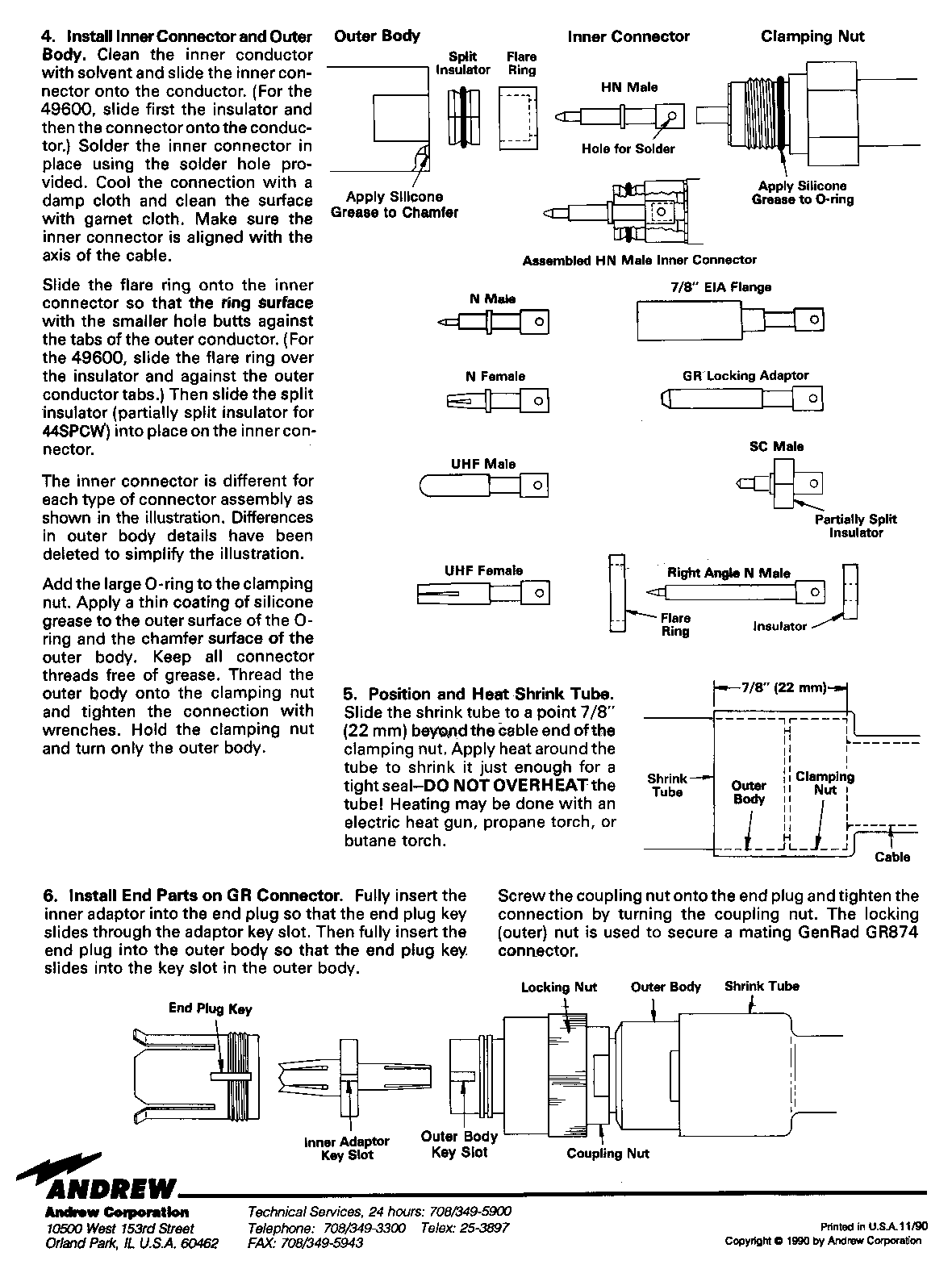

FSJ 4-50 Cable Connector "N" Page 2

[PDF] LDF 4-50 "Positive StopTM" Connector sheet ***LARGE file

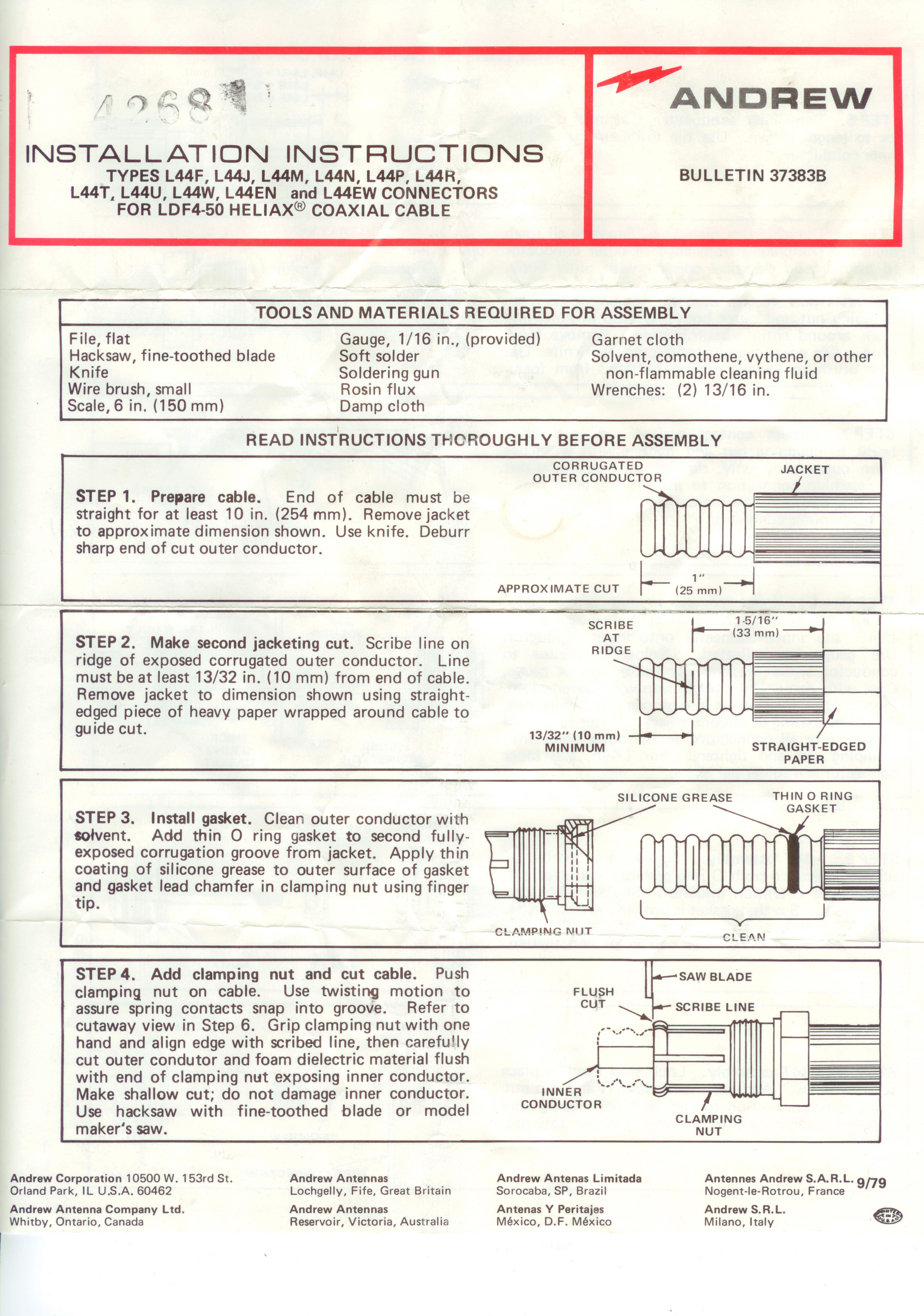

LDF 4-50 "RingFlareTM" Connector sheet - Page 1

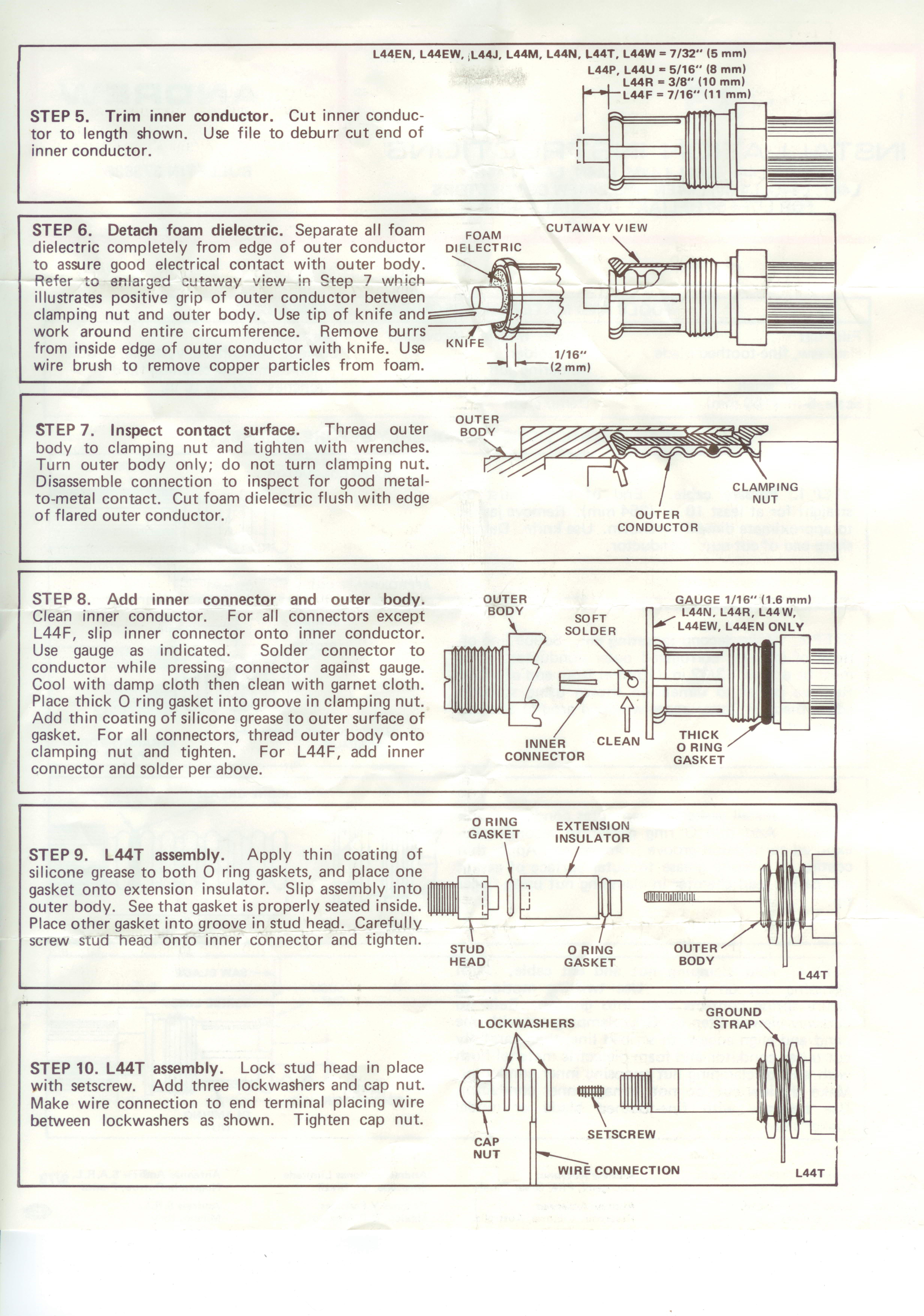

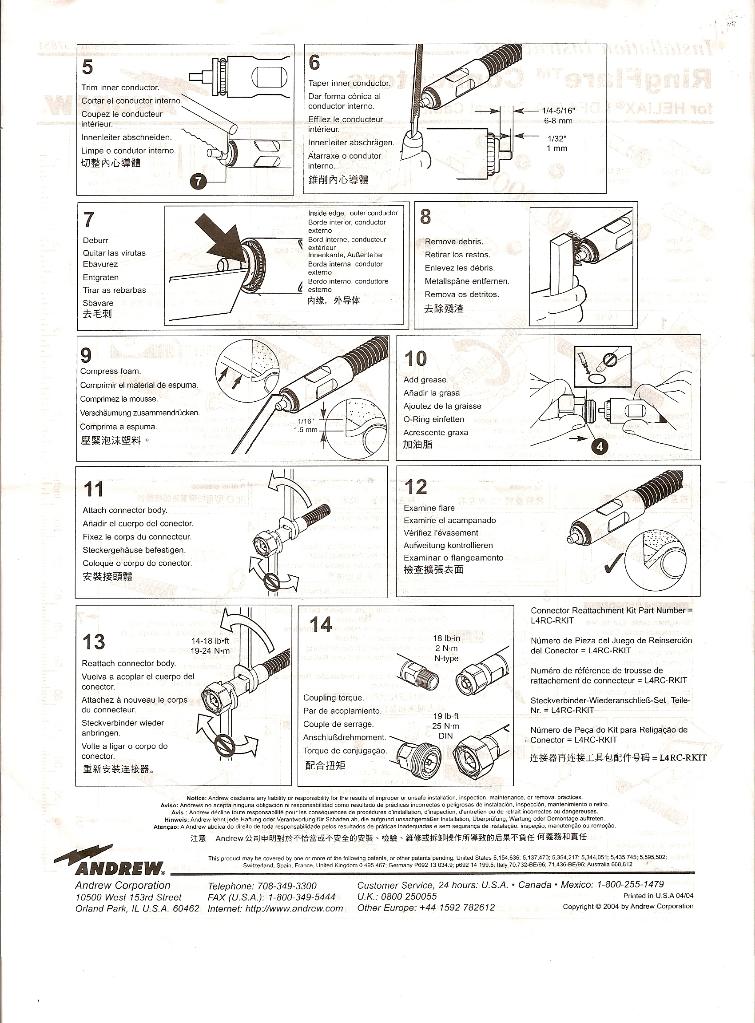

LDF 4-50 "RingFlareTM" Connector sheet - Page 2

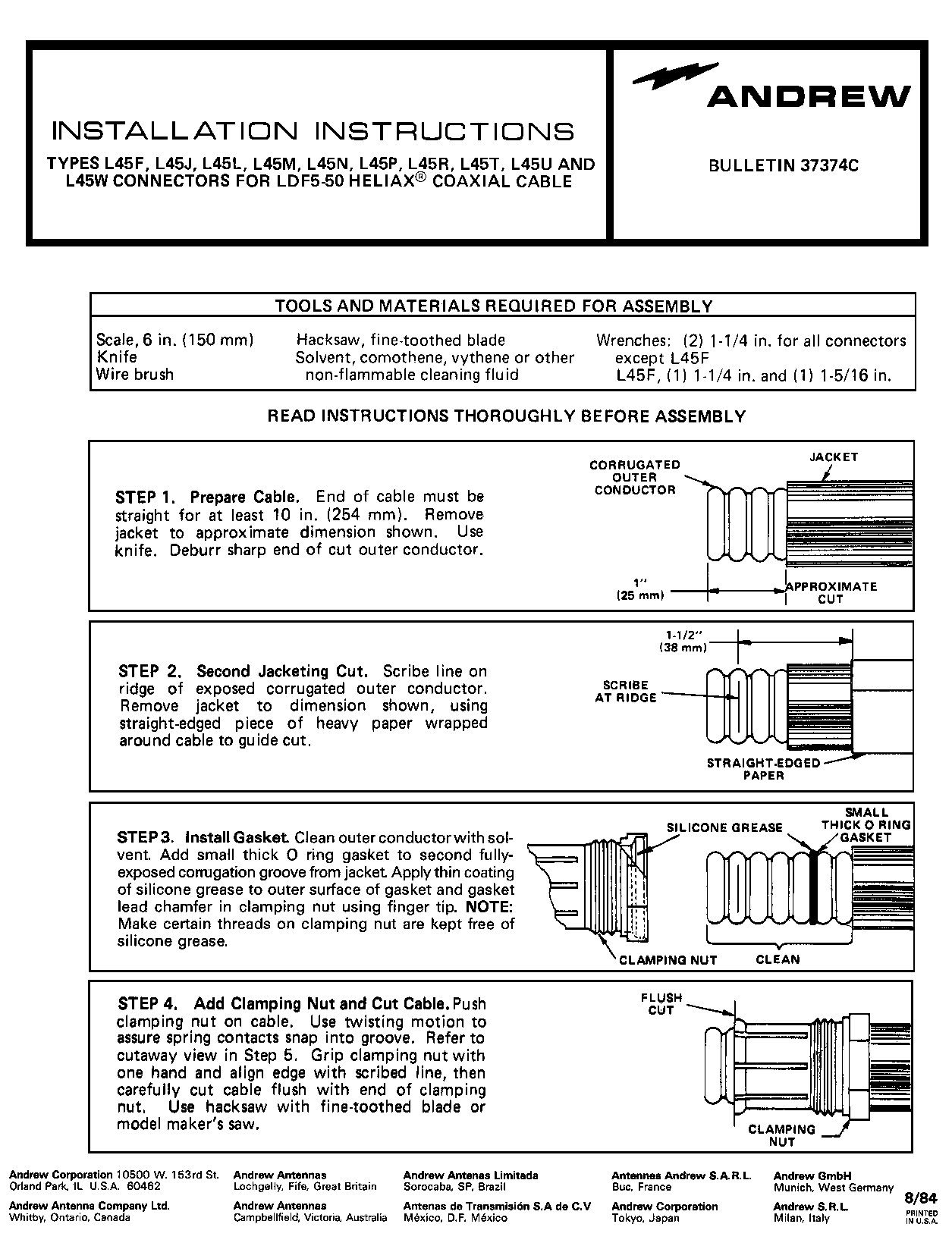

LDF 5-50 L45 Series "N" Page 1

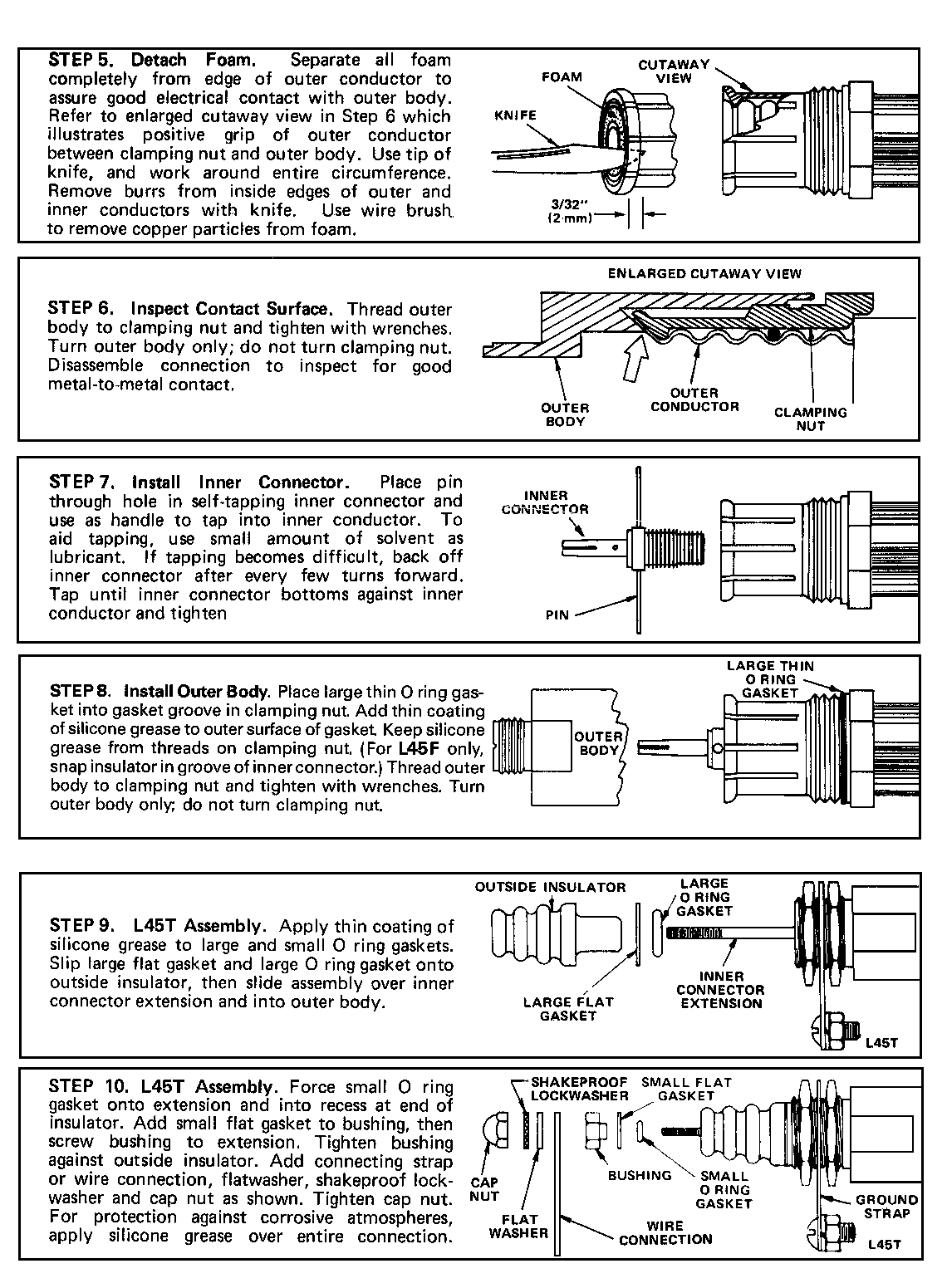

LDF 5-50 L45 Series "N" Page 2

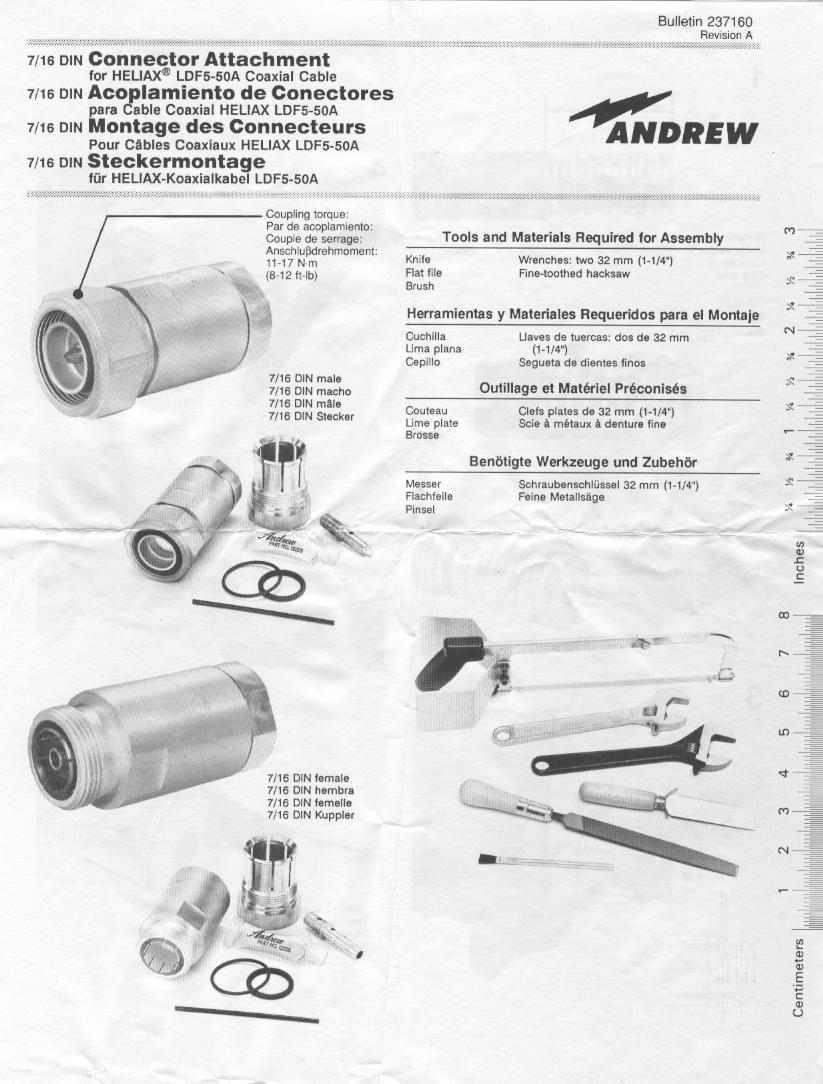

[P] LDF 5-50 L45 Series "7/16 (DIN)" Page 1

[P] LDF 5-50 L45 Series "7/16 (DIN)" Page 2

[P] LDF 5-50 L45 Series "7/16 (DIN)" Page 3

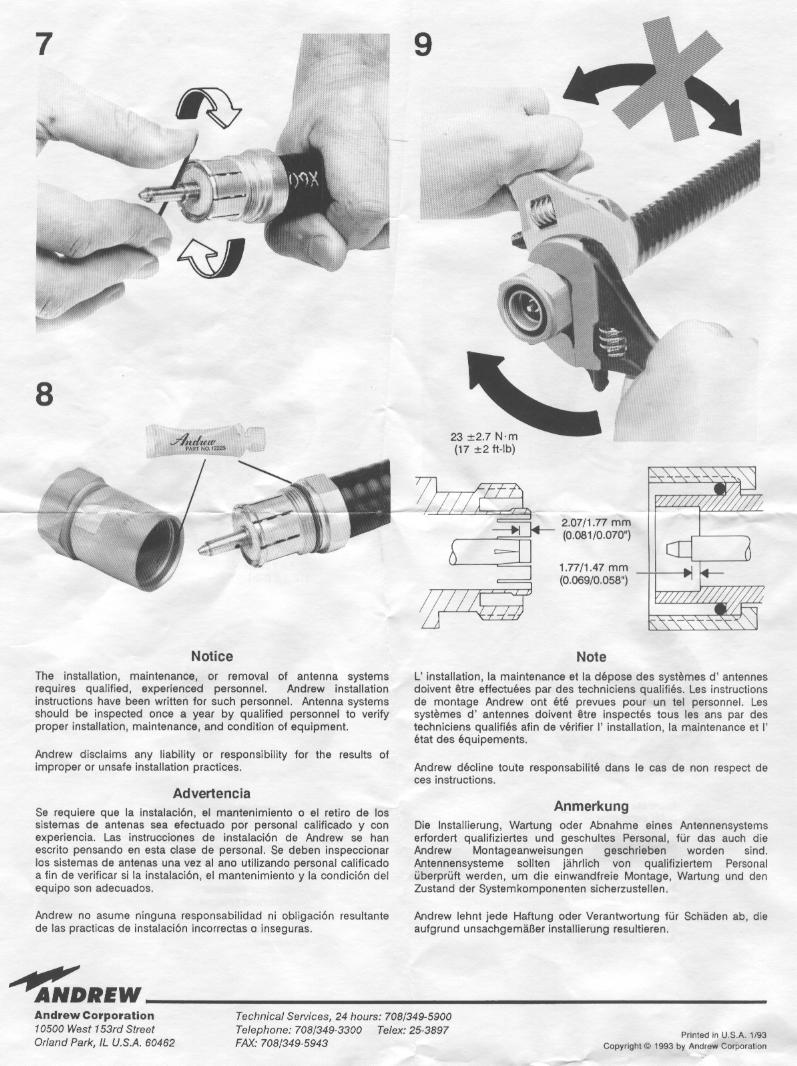

[P] LDF 5-50 L45 Series "7/16 (DIN)" Page 4

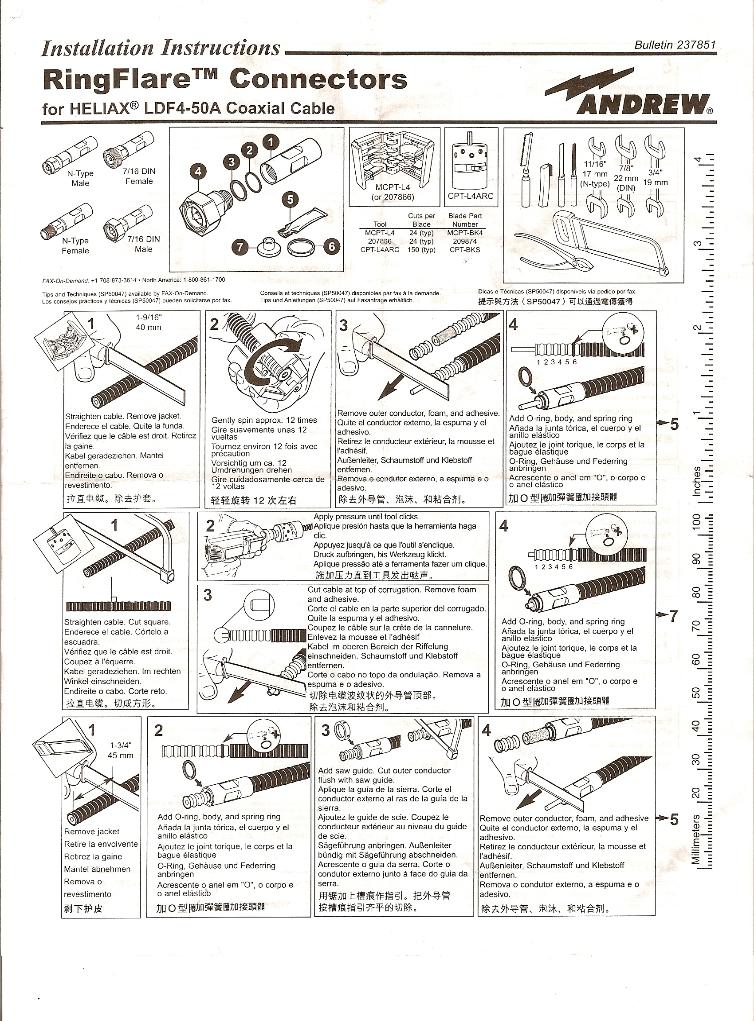

[PDF] LDF 5-50 "RingFlareTM" Connector

Suggest: Right-Click and select 'Open in new window'

And if these are not to your taste then the Andrew site search facility will be your next stop.

V. Useful site here with many connector assembly sheets: SurplusCoax.com & Component Connection Surplus

Last updated: 20070916 Notice:
No breach of Andrew copyright intended. This archive is stored as a service to colleagues in the Amateur Radio community.
Please contact The Webmaster if deemed in breach.
